Home > Mechanical Shock Test Machine >

Half Sine Wave Mechanical Shock Test Bench Mechanical Acceleration Impact Tester With ASTM Standard

Product Categories
ASLi (CHINA) TEST EQUIPMENT CO., LTD
Contact Now

Half Sine Wave Mechanical Shock Test Bench Mechanical Acceleration Impact Tester With ASTM Standard

Brand Name : ASLI

Model Number : MS-50

Certification : CE, ISO , SGS

Place of Origin : China

MOQ : 1 Set

Price : Negotiate

Payment Terms : T/T, Western Union

Supply Ability : 50 sets per month

Delivery Time : 40 workdays

Packaging Details : wooden case

Power : AC 220V

Product name : High quality acceleration sine wave shock test machine

Application : Battery

standard : ASTM Standard

Wave form : Half Sine Wave

table size : 500*700mm

Contact Now

Half Sine Wave Mechanical Shock Test Bench Mechanical Acceleration Impact Tester With ASTM Standard

Shock testing systems Design standards: GB/T2423-2008, GJB1217, GJB360.23, GJB150, GJB548, MIL-STD-202F, IEC-68-2-27, MIL-STD-883E, MIL-STD-810F, ISTA, UL


Shock testing systems Applications: aviation,aerospace,vessel,military industry,consumer electronics ,automobile,household appliances, display device etc

Product Application

Bump Tester is mainly used for small products for impact test, to assess the product's ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.
SPECIFICATIONS FOR Mechanical Acceleration Impact Tester
Models
MS-50
MS-100
MS-200
MS-500
MS-800
MS-1000
Load Capacity (Kg)
50
100
200
500
800
1000
Table Size (mm)
500X700
700X700
700X700
800X800
1000X1000
1200X1200
Pulse Acceleration (m/s2)
Half Sine Wave
3-20
3-20
3-20
3-20
3-20
3-20
Peek Value acceleration
50-1000
50-1000
50-1000
50-1000
50-1000
50-1000
Shock Frequency(times/min)
10-80
10-80
10-80
10-80
10-80
10-80
Max drop height mm
60
60

60
60
60
60

Main Features

Bump Tester Features:
1.Built-in self-protection device, no secondary impact,
2.Shock height controlled by digital
3.Good repeatability test data
4.Signal generator provides a variety of choice: half sine wave, trapezoidal wave, sawtooth wave, square wave, etc.
5.Good vibration isolation performance, impact on the environment can control within the scope of the requirements:
6.Good Safety performance.

7.Conform to the IEC, MIL, GJB, JIS, ASTM and other international and domestic standard shock waves

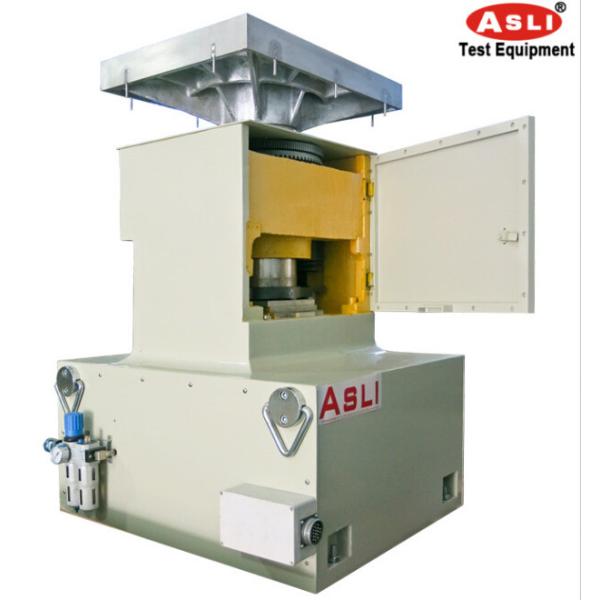

Pictures for reference:

Half Sine Wave Mechanical Shock Test Bench Mechanical Acceleration Impact Tester With ASTM Standard

Contact us to discuss your needs.

We’re always here to help. If you’re interested in any of our services please don't hesitate to send your inquiry and we’ll assist in any way we can.
